Integrating with Synology

Overview

Blumira integrates with Synology network attached storage (NAS) devices to stream logs for centralized visibility and reporting. This integration requires the Blumira sensor Logger Module, which acts as a syslog server.

Before you begin

This integration requires a Blumira sensor to be installed before you can complete the steps below. Ensure that you complete the steps in Building a Blumira sensor with Ubuntu before you continue.

Gather the IP address of your Blumira sensor to use when configuring the external service.

To find and copy the IP address of the sensor, do the following:

1. In Blumira, navigate to Settings > Sensors.
2. Click the sensor row to open the details page.
3. In the Overview section, next to Host Details, copy the IP address.

Forwarding logs to Blumira

To configure your Synology NAS device to stream logs to Blumira, do the following:

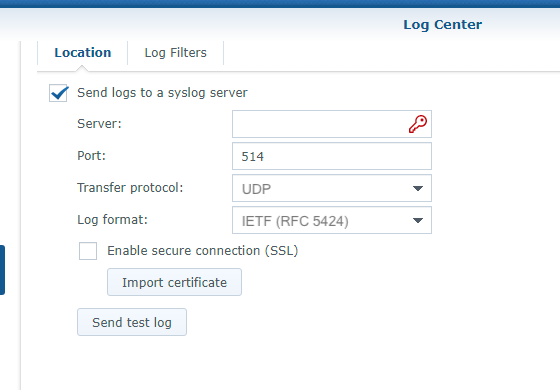

1. Log in to the Synology Log Center and navigate to Log Sending.
2. Click the check box next to Send logs to a syslog server.
3. In the Server box, paste your Blumira sensor's IP address.
4. In the Port box, type 514.
5. In the Transfer protocol box, select UDP.
6. In the Log format box, select IETF (RFC 5424).
7. Click Apply to save settings.

Reference: See Synology Log Sending for additional details.
